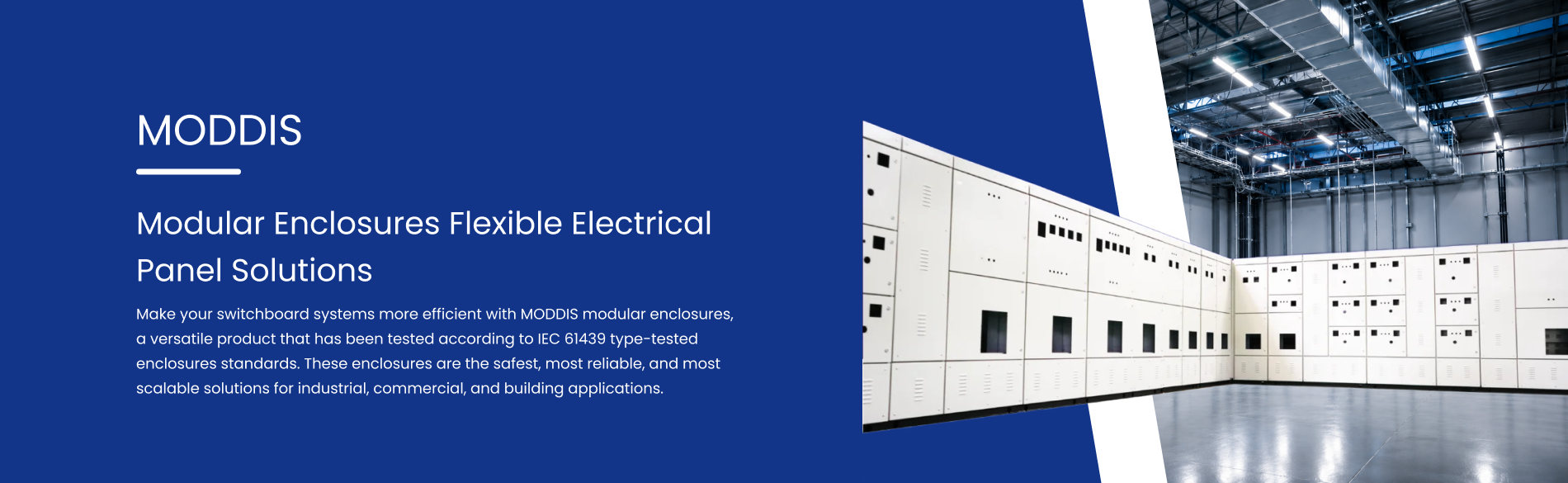

MODDIS Modular Enclosures Flexible Electrical Panel Solutions
Make your switchboard systems more efficient with MODDIS modular enclosures, a versatile product that has been tested according to IEC 61439 type-tested enclosures standards. These enclosures are the safest, most reliable, and most scalable solutions for industrial, commercial, and building applications.
Product Highlights
The MODUTEC modular enclosures deliver unmatched versatility and value to modern switchboard applications. These electrical enclosures feature a modular base frame; thus, free-standing and standalone enclosures can be transported and installed section-wise without any difficulty. With our Partner Program, MODUTEC also provides support to panel builders in terms of guidance to standardize designs, simplify assembly, and enhance productivity.
The MODUTEC Frame Bar comprises a three-bend profile, which is punched, pierced, and tapped to allow quick assembly, flexibility, and adaptability of the modular enclosure. Besides the standard 2400 mm lengths, it is also available for smaller sizes starting from 180 mm. In this way, panel manufacturing companies can use the material more efficiently and produce less waste.
The MODUTEC Cross Bar is a four-bend profile designed to provide the structural strength of switchboard enclosures. The weight of the switchgear and bus bars is supported by the Cross Bar directly; thus, the enclosure walls are not loaded. Different from traditional welded designs. Small pieces starting from 180 mm or 2400 mm lengths are the two options available for this product. Including this component in a modular enclosure system increases robustness and design freedom.
The MODUTEC Tripod is a high-precision, pressure die-cast aluminum alloy, one of the main components; the corner joints of the switchboard shipping sections are the parts that are structurally stable by the MODUTEC Tripod, are and in addition to this, the earthing continuity for the whole modular enclosure line is a solid one made through it.
Electro-galvanized steel of 2 mm is used to manufacture MODUTEC LV profiles, i.e. Frame Bars (FB) and Cross Bars (CB). With this construction, you get the strength of steel, the corrosion resistance of zinc, and the long-term structural stability of the metal. Thus producing durable electrical enclosures that are not only high-performing but also eco-friendly.
MODDIS Modular Enclosure System Features
MODDIS modular enclosures promote the standardization of height, width, and depth, which elevates scalability, consistency, and productivity levels of panel manufacturing companies.
There is essentially a full range of panel accessories and busbar support systems available, making it possible to carve out any configuration that meets the particular needs of the project.
MODUTEC uses both 6 mm and 10 mm thick busbars and also has the necessary accessories and busbar support systems to go with them.
The enclosures are electrically safe for usage with any brand of breakers; that is, they ensure a smooth and integration-free operation within the MODUTEC modular switchboard enclosure system.
The reversibility of all the doors extends their usefulness since it becomes possible to change the opening orientation from left-hand side (LHS) to right-hand side (RHS) or vice versa, as the situation demands.
The facilitation is such that the mounting of 7100 A copper or 5000, An aluminum busbar is attainable, while the supports are engineered to tolerate fault levels of up to 120 kA for 1 second or 50 kA for 3 seconds, thus being able to meet IEC 61439 type-tested enclosure requirements and support AS/NZS 61439 compliant enclosure configurations where specified.
Flexible Modular Enclosures for Scalable Panel Configurations
Two vertical modules may be combined or separated without difficulty, even at the site, to produce configurations that are larger or smaller as necessary. The adaptability of MODDIS modular enclosures thus makes them quicker to assemble, highly flexible in design, and quite affordable for a broad range of industrial applications.
In contrast to traditional modular systems, MODUTEC empowers panel builders to cut frame bars and crossbars to the required length directly without being dependent on the fixed sizes. This change in practice reduces the need for inventory, eliminates waiting times caused by non-availability of profiles, and facilitates efficient planning of electrical panel manufacturing projects.
Be inclined to use the MODDIS modular enclosures to enjoy the threefold benefits – versatility, adaptability, and efficiency – that modern switchboard enclosure systems offer. Being a product of a seasoned electrical panel manufacturer, MODDIS is your reliable, scalable, and cost-effective solution provider for the most demanding applications. For comprehensive details and specifications of the configurations, consult the MODUTEC product catalog.
